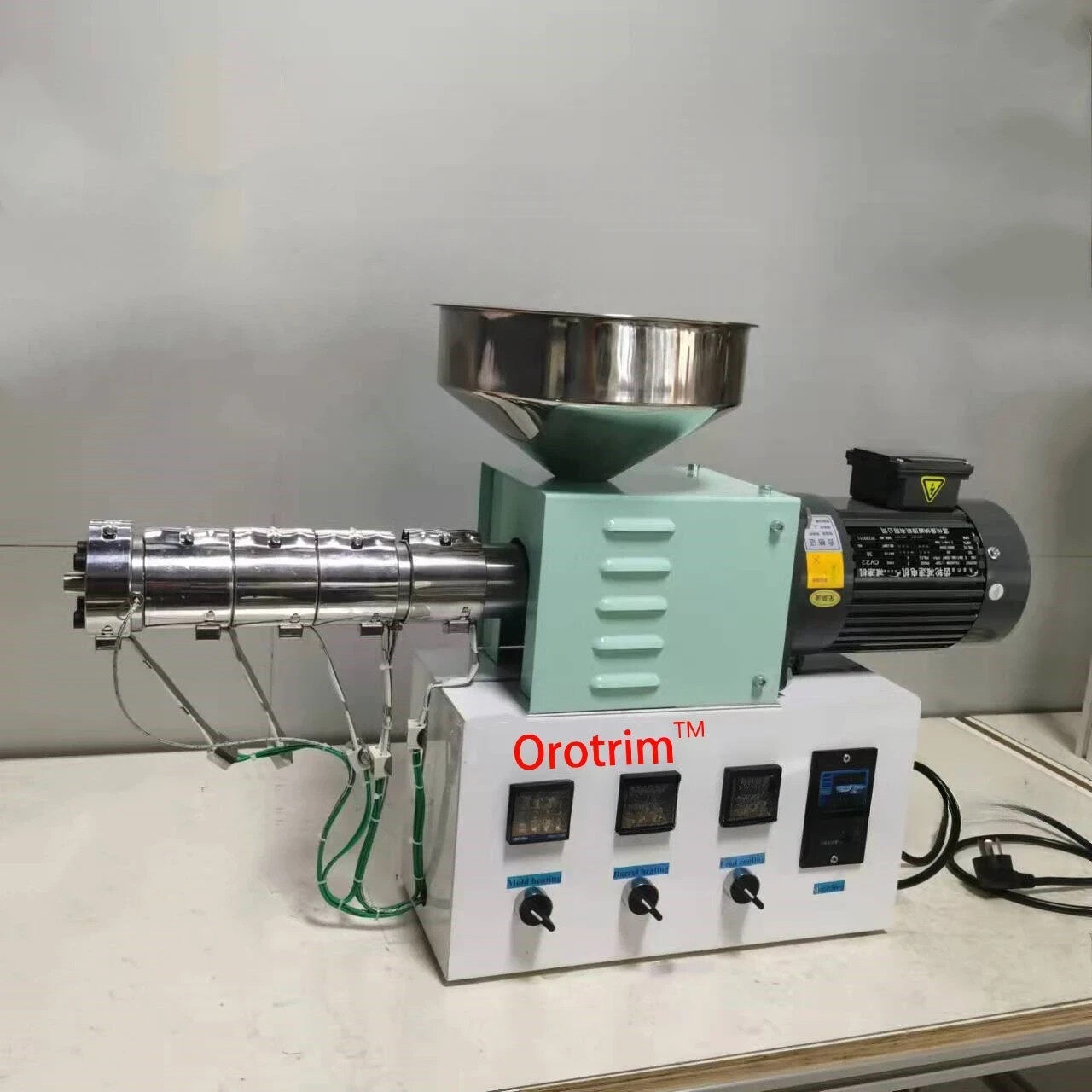

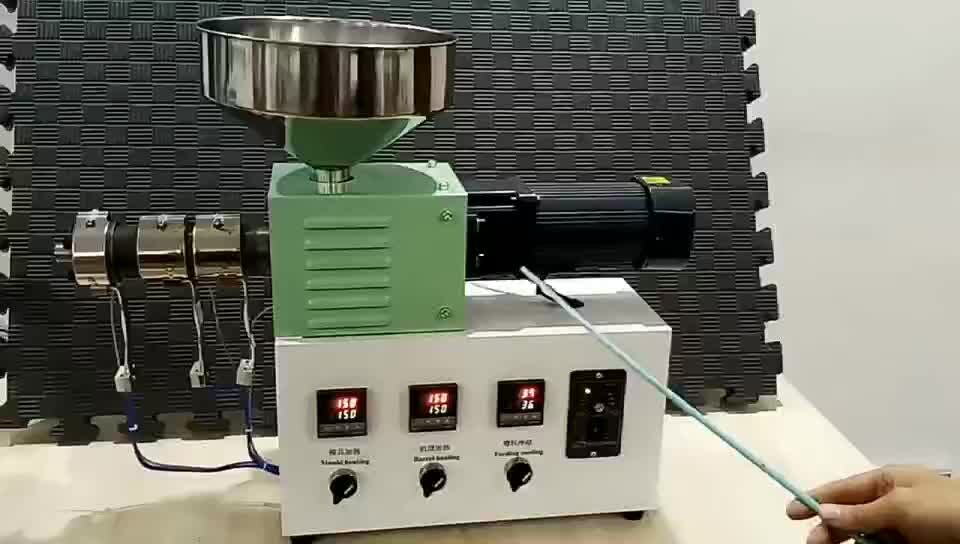

SJ35 Single-Screw Extruder

Desktop Single-Screw Extruder for Laboratory Use

Model: SJ35

Application: Plastic product extrusion

Screw Diameter: 35mm

Maximum Basic Diameter: 35mm

Production Capacity: 0.1-3kg/h

Positioning Accuracy: 0.03mm

Overall Dimensions: 720×200×400mm

Motor Power: 0.25kw

Product Details

*Model: SJ35

*Screw Diameter: 35mm

Designed Output: 0.1-3KG/h

Machine Dimensions: 0.760.20.5m

*Weight After Wooden Case Packaging: 44KG

*Extrusion Center Height: 300mm

*Extrusion Direction: Right → Left Discharge

*Motor Power: 400w

*Voltage: 220V/ (or Customizable)

*L/D Ratio: 13:1

*Heating Temperature: Room Temperature to 350°C

*Feeding Zone Equipped with Mute Cooling Device

*Screw and Barrel Material: 38CrMoAl, Nitrided Treatment
